16:9 progressive quarter CIF proxed by Apache 92 Kbps (overall about 150 Kbps) wrapped in an mpeg4 media base format (MBFF, ISO 14496-16) and stream as a MPEG2 (DVB) TS

This is an experiment.
The file is Home 10' hCIF 16.9 an. h264_25p_DAR16.9 PAR128.45_96(60v32a).mp4, despite the "h" is not an half CIF but a quarter CIF video, with a pixel aspect ratio 2.84, the proportions of macroblock is more than twice the ordinary size of PAL (1.33).

In order to test the streaming capability, I've used a small portion (about 600 seconds) of the movie Home realised by Yann Arthus Bertrand in 2009, copyright Europa Corp, publicly viewable on many web sites. I've added a specific page with all the disclaimer and additional informations.

The video here embedded is the sequence of 25 progressive images per second.
The image is often jerky but the encoded resolution is 180 pixel by 288, one quarter of the original (already anamorphic) 720. The audio is almost terrible, but 32 Kbps is really a low low bitrate. Its size is acceptable for animated icons more than video encoding
Here is shown in 256 by 144 pixel, 1/16 of ordinary PAL 16:9 (often called qCIF).
It has a Pixel Aspect Ratio of 128:45 (2.84, much more than standard 1.7 of ordinary anamorphic 16:9) in order to obtain the Display Aspect Ratio of 16:9.

The embedded stream can be directly loaded by VLC as http://www.iginomanfre.it/rh_mp4_CIF_120_TS.
The video is a h264 16:9 more than anamorphic, 60 Kbps CBR 25 progressive frame per second with 32 Kbps AAC-LC stereo 48KHz audio compressed with Rhozet Carbon Coder. The mp4 MBFF (Media Base Format File) is extremely lighter than TS: about 10 Kbps vs more than 120 Kbps of MPEG2 TS. It is stream with the VLC TS (DVB) engine because FLV streamer seems to suffer looping problems.

This is a live streaming, not based on a slice downloaded material (such as Dinamic streaming ones are).

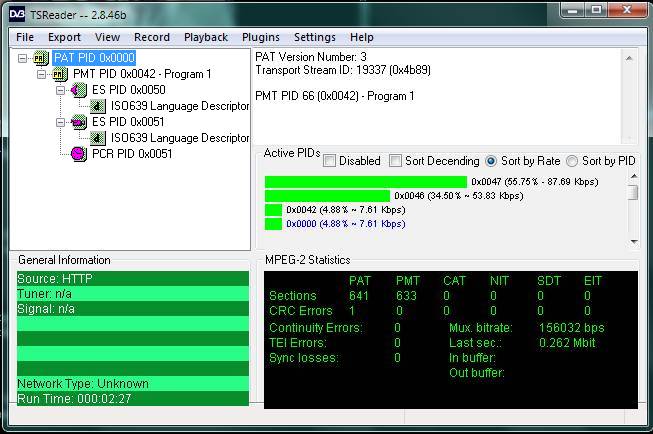

The TS reader analysis of the stream http://www.iginomanfre.it/rh_mp4_CIF_120_TS

General

Complete name : C:\video\Home 10' hCIF 16.9 an. h264_25p_DAR16.9 PAR128.45_96(60v32a).mp4
Format : MPEG-4
Format profile : Base Media / Version 2
Codec ID : mp42
File size : 6.91 MiB
Duration : 10mn 0s
Overall bit rate mode : Variable
Overall bit rate : 96.5 Kbps
Encoded date : UTC 2014-05-27 10:19:42
Tagged date : UTC 2014-05-27 10:19:42

Video

ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L3.1
Format settings, CABAC : Yes
Format settings, ReFrames : 4 frames
Format settings, GOP : M=3, N=60
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 9mn 59s
Bit rate mode : Constant
Bit rate : 60.0 Kbps
Width : 180 pixels
Height : 288 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.046
Stream size : 4.47 MiB (65%)
Language : English
Encoded date : UTC 2014-05-27 10:19:42
Tagged date : UTC 2014-05-27 10:19:42

Audio

ID : 2
Format : AAC
Format/Info : Advanced Audio Codec
Format profile : HE-AAC / LC
Codec ID : 40
Duration : 10mn 0s
Bit rate mode : Variable
Bit rate : 30.7 Kbps
Maximum bit rate : 49.7 Kbps
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 KHz / 24.0 KHz
Compression mode : Lossy
Stream size : 2.20 MiB (32%)
Language : English
Encoded date : UTC 2014-05-27 10:19:42
Tagged date : UTC 2014-05-27 10:19:42
